Peak Inverse Voltage of SCR

In terms of voltage stress across SCRs, which of the given options correctly compares a bridge converter to a mid-point converter?
⚑ Report issue

Found a wrong answer, translation, image or source problem? Send it to editorial review.

Answer & Explanation
Correct AnswerB. Lower PIV requirement per SCR

Quick Explanation

For the same DC output, a bridge converter subjects each SCR to a lower peak inverse voltage than a mid-point converter. This reduced PIV requirement is an important device-voltage-stress advantage of the bridge arrangement.

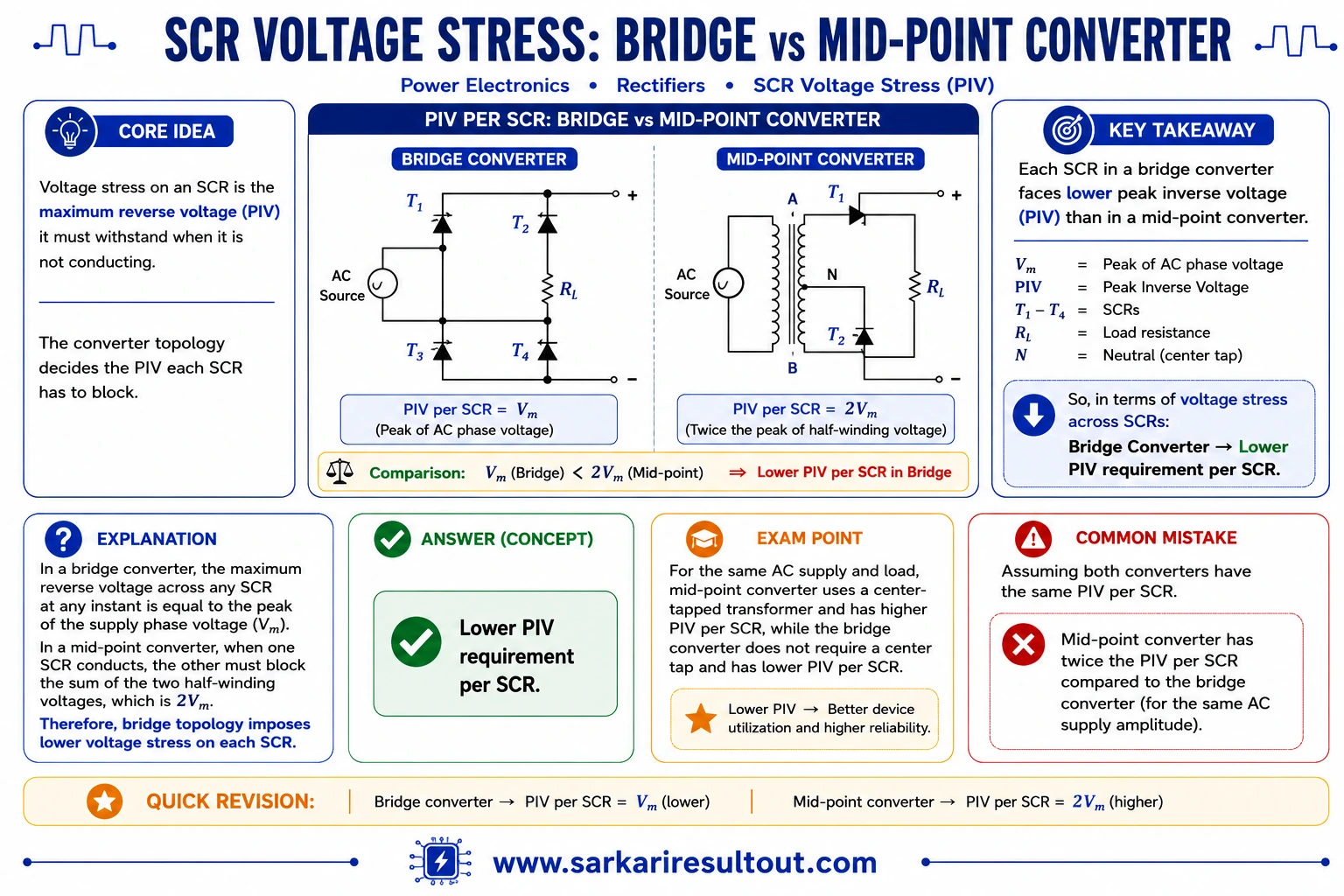

Peak Inverse Voltage of SCR explanatory diagram

Detailed Explanation

Correct Answer

B — Lower PIV requirement per SCR

Explanation

For the same DC output, a bridge converter subjects each SCR to a lower peak inverse voltage than a mid-point converter. This reduced PIV requirement is an important device-voltage-stress advantage of the bridge arrangement.

Key Concept

Peak Inverse Voltage of SCR

Exam Point

Bridge converter: more devices, but lower PIV per SCR.

Quick Trick

Bridge converter: more devices, but lower PIV per SCR.

Exam Tip

Bridge converter: more devices, but lower PIV per SCR.
