Holding Current

After a thyristor in a power electronic converter of a wind turbine system is triggered into conduction, under which condition does it stop conducting current?
⚑ Report issue

Found a wrong answer, translation, image or source problem? Send it to editorial review.

Answer & Explanation
Correct AnswerB. It stops conducting when the anode current falls below the holding current

Quick Explanation

Once an SCR is latched ON, removing the gate signal does not turn it OFF. It turns OFF when its anode current is forced below the holding current (and sufficient recovery conditions are provided).

Formula / Key Relation

Turn-off condition: IA < IH

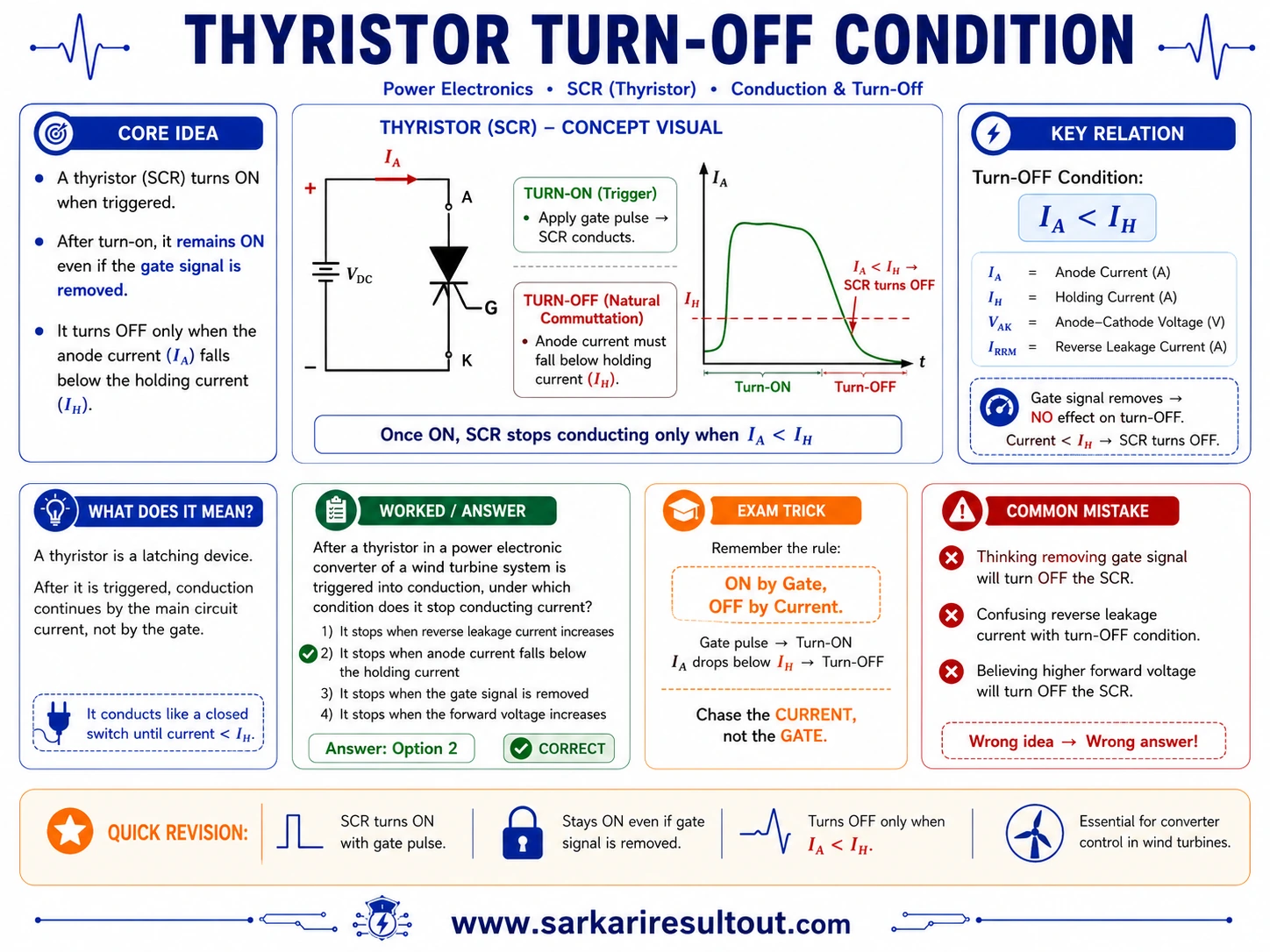

Holding Current explanatory diagram

Detailed Explanation

Correct Answer

B — It stops conducting when the anode current falls below the holding current

Explanation

Once an SCR is latched ON, removing the gate signal does not turn it OFF. It turns OFF when its anode current is forced below the holding current (and sufficient recovery conditions are provided).

Key Concept

Holding Current

Formula

Turn-off condition: IA < IH

Exam Point

Gate turns an SCR ON; current below holding current turns it OFF.

Common Mistake

Do not assume gate removal turns off a conventional SCR.

Quick Trick

Gate turns an SCR ON; current below holding current turns it OFF.

Common Mistake

Do not assume gate removal turns off a conventional SCR.

Exam Tip

Gate turns an SCR ON; current below holding current turns it OFF.
