Timer 0 External Input T0

When a timer in the 8051 microcontroller is programmed as a counter, to which pin is the external clock pulse applied for Timer 0?

⚑ Report issue

Found a wrong answer, translation, image or source problem? Send it to editorial review.

Answer & Explanation

Correct AnswerD. P3.4

Quick Explanation

The 8051 assigns the external counter input T0 to port pin P3.4. Timer 1 uses T1 on P3.5, so Timer 0 counter pulses must be applied to P3.4.

D — P3.4

The 8051 assigns the external counter input T0 to port pin P3.4. Timer 1 uses T1 on P3.5, so Timer 0 counter pulses must be applied to P3.4.

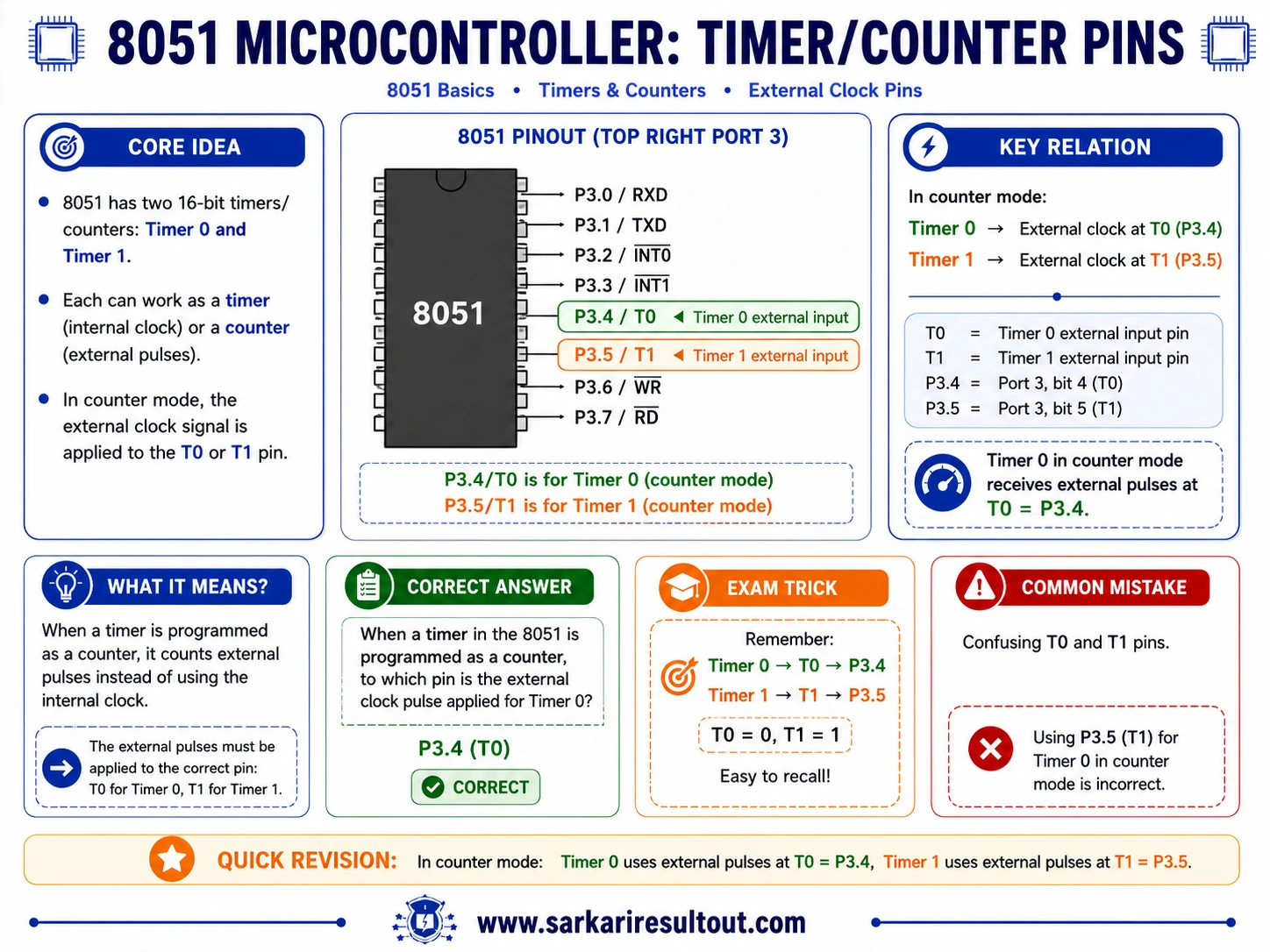

Timer 0 External Input T0

8051: T0=P3.4, T1=P3.5.

8051: T0=P3.4, T1=P3.5.

8051: T0=P3.4, T1=P3.5.
