Consider the circuit shown in Fig. Q46. The switch is initially closed for a long time and opens at t = 0s. What is the value of R1 and R2, if current i(t) = 2.5 + 1.5e– 4t A for t > 0s? Fig. Q46
Answer & step-by-step solution

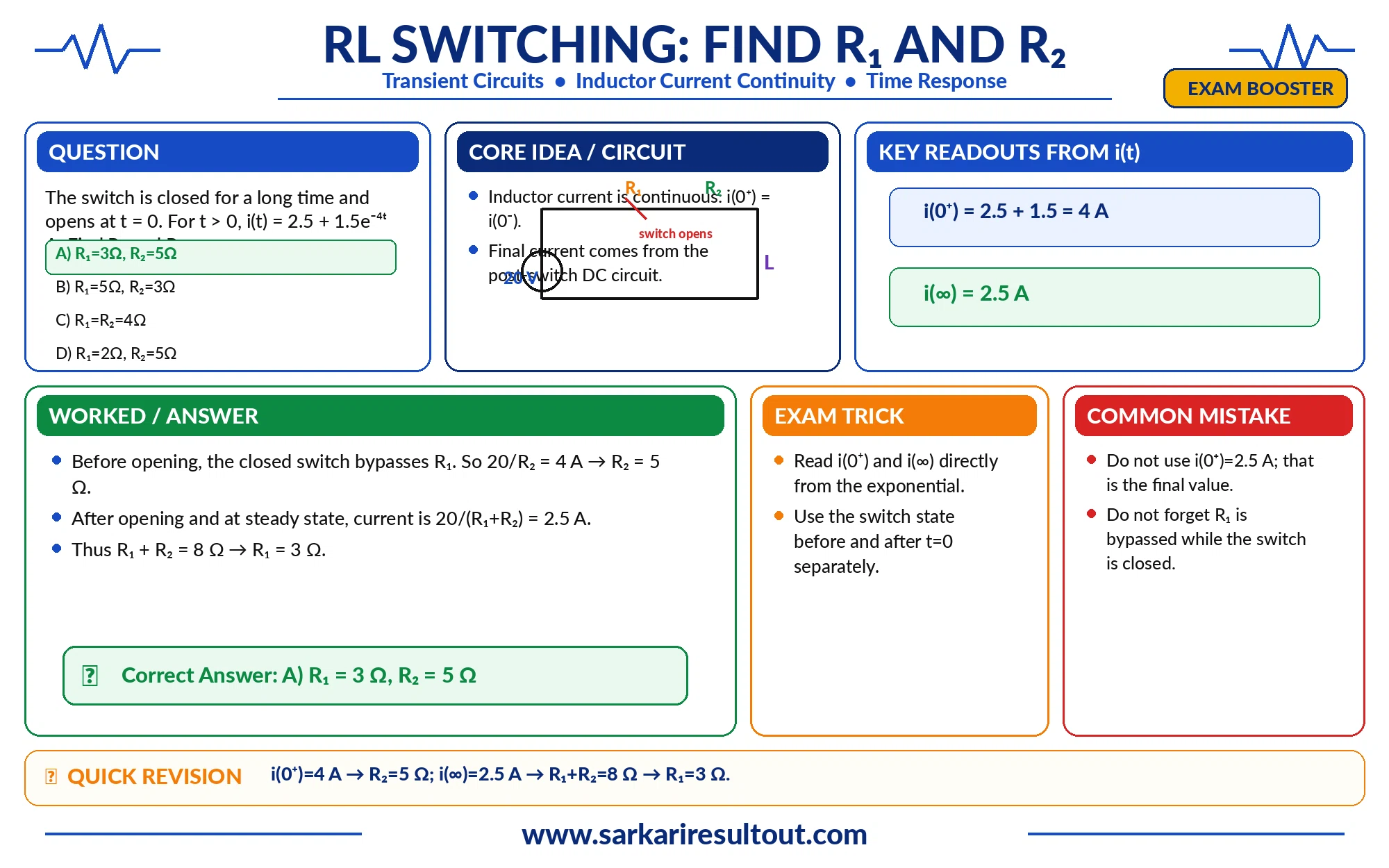

For an RL switching response i(t)=I∞+(I0+−I∞)e⁻ᵗ/τ, the given expression identifies I∞=2.5 A, the initial current as 4 A, and τ=1/4 s. Applying the pre-switch and post-switch DC equivalents and τ=L/Req gives R1=3 Ω and R2=5 Ω.
Concept and Reasoning
For an RL switching response i(t)=I∞+(I0+−I∞)e⁻ᵗ/τ, the given expression identifies I∞=2.5 A, the initial current as 4 A, and τ=1/4 s. Applying the pre-switch and post-switch DC equivalents and τ=L/Req gives R1=3 Ω and R2=5 Ω.
Calculation / Key Relation
i(t)=I∞+(I0+−I∞)e⁻ᵗ/τ
τ=0.25 s
R1=3Ω, R2=5Ω
Exam Takeaway
Read I∞, I0+ and τ directly from the exponential form first.
Common Mistake
Do not assume the coefficient of e⁻⁴ᵗ is the final current.
Quick Trick
Read I∞, I0+ and τ directly from the exponential form first.
