Maximum Phase Lead

The transfer function of a phase lead controller is (1 + 3Ts) / (1 + Ts). What will be the maximum phase provided by this controller?

⚑ Report issue

Found a wrong answer, translation, image or source problem? Send it to editorial review.

Answer & Explanation

Correct AnswerD. 30°

Quick Explanation

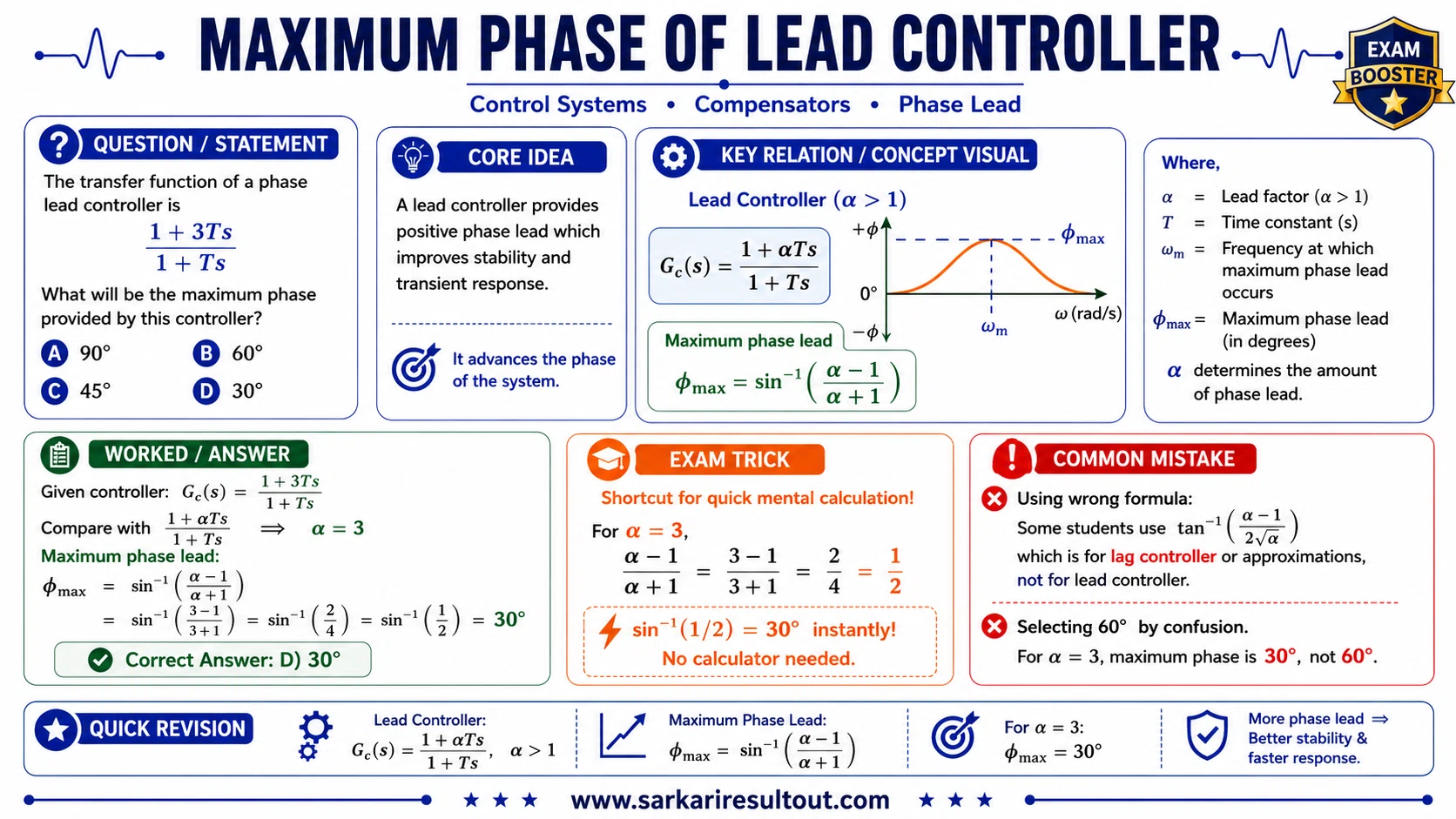

For a lead network (1+aTs)/(1+Ts) with a=3, the maximum phase lead satisfies sinφm=(a−1)/(a+1)=2/4=0.5. Therefore φm=30°.

Formula / Key Relation

sinφm=(a−1)/(a+1); a=3 ⇒ φm=30°

Detailed Explanation

Correct Answer

D — 30°

Concept and Reasoning

For a lead network (1+aTs)/(1+Ts) with a=3, the maximum phase lead satisfies sinφm=(a−1)/(a+1)=2/4=0.5. Therefore φm=30°.

Calculation / Key Relation

sinφm=(a−1)/(a+1)

a=3 ⇒ φm=30°

Exam Takeaway

For lead compensation, a>1 and the maximum phase follows the sine relation.

Common Mistake

Do not take the coefficient ratio itself as an angle.

Quick Trick

For lead compensation, a>1 and the maximum phase follows the sine relation.

Common Mistake

Do not take the coefficient ratio itself as an angle.

Exam Tip

For lead compensation, a>1 and the maximum phase follows the sine relation.
