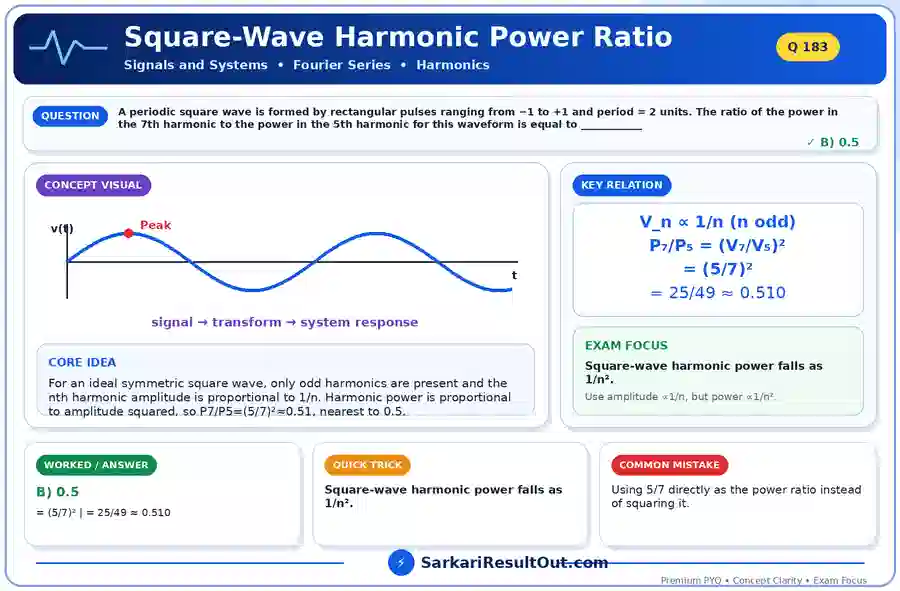

A periodic square wave is formed by rectangular pulses ranging from −1 to +1 and period = 2 units. The ratio of the power in the 7th harmonic to the power in the 5th harmonic for this waveform is equal to ____________
⚑ Report issue
Found a wrong answer, translation, image or source problem? Send it to editorial review.
For an ideal symmetric square wave, only odd harmonics are present and the nth harmonic amplitude is proportional to 1/n. Harmonic power is proportional to amplitude squared, so P7/P5=(5/7)²≈0.51, nearest to 0.5.
Formula / Key Relation
Vn ∝ 1/n (n odd)
P₇/P₅ = (V₇/V₅)²
= (5/7)²
= 25/49 ≈ 0.510
Detailed Explanation
Concept & Reasoning
The Fourier series of a bipolar 50% duty square wave contains odd terms 1, 1/3, 1/5, 1/7, …. If the load resistance is the same for every harmonic, power contributed by one sinusoidal harmonic is proportional to V_n². Thus the ratio is the square of the amplitude ratio.
How to Solve It in the Exam
Square-wave harmonic power falls as 1/n².
Important Exam Point
Use amplitude ∝1/n, but power ∝1/n².
Related Revision Path
This question sits in the revision path Signals and Systems → Fourier Series → Harmonics .
Quick Trick
Square-wave harmonic power falls as 1/n².
Common Mistake
Using 5/7 directly as the power ratio instead of squaring it.
Exam Tip
Use amplitude ∝1/n, but power ∝1/n².
